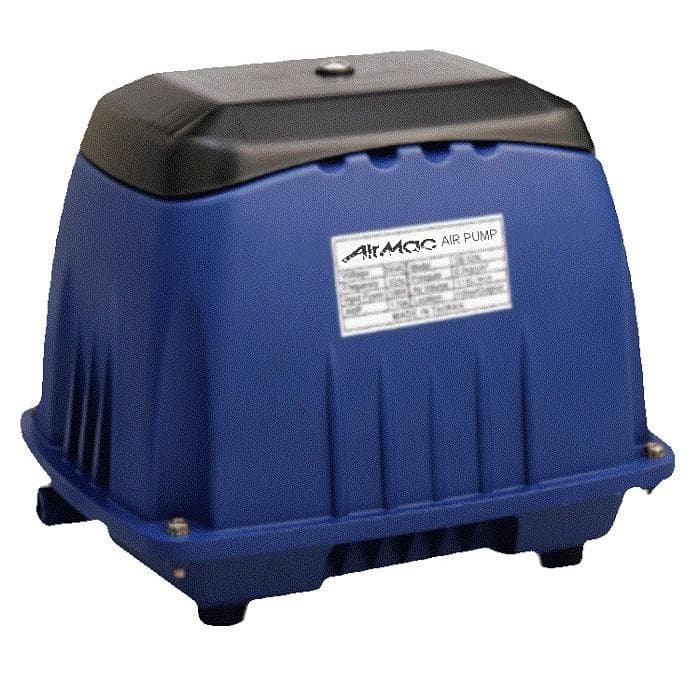

AIRMAC DMX150 AIR PUMP

Linear Air Pumps
DBMX150

The DBMX series pumps are designed not only have a stylish shape for their appearances but also with strong and constant flow, low noise level, low power consumption and long lifespan. Hi-Performance DBMX series are equipped with built-in protection devices, safety swtich and thermostat, to protect pmps from any unpredicatable diaphragm breaks or an abnormal internal temperature rising to decrease the maintenance cost to the lowest.
Performance range is from 80 to 300LPM(2.83~10.61CFM) at rated pressure 196.2mbar(2.84psi), Maximum pressure is 402~490mbar(5.68~7.1psi).

LINEAR AIR PUMP DBMX150
Model No. Voltage(VAC) Frequency(HZ) Rated Pressure Airflow AMP(A) WATT(W)
kg / cm2 psi LPM cfm
DBMX150 110 ~ 120 60 0.20 2.84 150 5.30 2.6 160
DBMX150 220 ~ 240 50 0.20 2.84 150 5.30 1.2 170
Operating range: 0.1 to 0.25 kg/cm2 (1.42 to 3.55 PSI)
