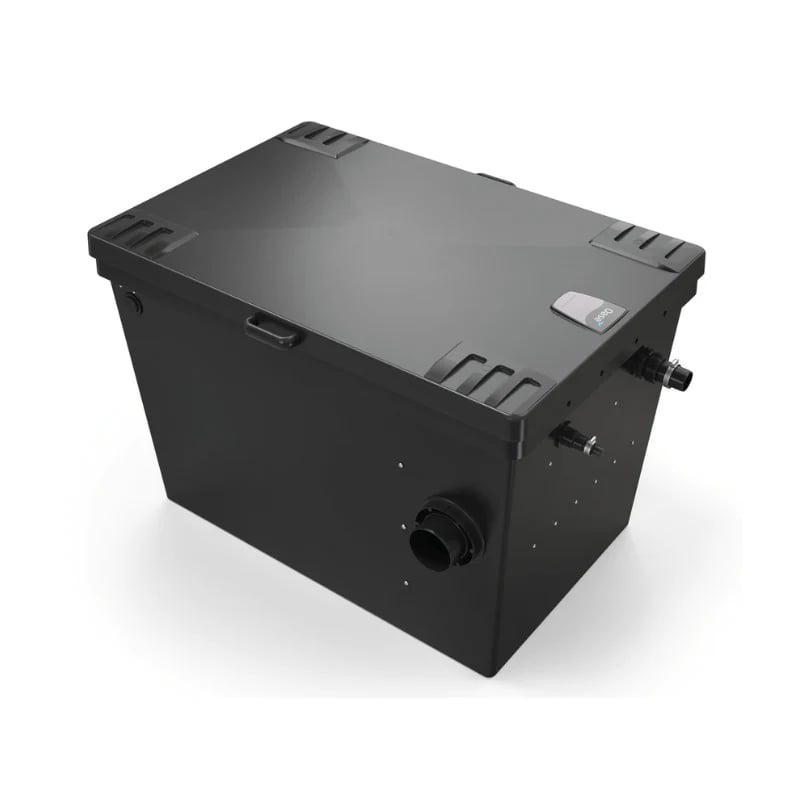

Oase BioTec ScreenMatic² 145000 - High-Performance, Low Effort Pond Filter 30000L

Oase BioTec ScreenMatic² 145000

The Oase BioTec ScreenMatic² 145000 is a compact, low maintenance flow-through pond filter providing mechanical and biological filtration, creating crystal clear water quality in ornamental, Goldfish and Koi ponds alike. The Oase ScreenMatic² filter is a combination of all the well known features of its predecessor as well as enhanced benefits that have been introduced to make this filter more efficient and even easier to operate then ever before.

Features:

• Clear and healthy pond water with minimum maintenance requirements
• Particularly long service life thanks to automatic coarse debris extraction before it enters into the filter
• Continuous belt filter at an affordable price

Characteristic:

• GUARANTEED: Includes OASE clear water guarantee

• LOW MAINTENANCE: Coarse dirt is removed before it enters the filter

• SELF-CLEANING: The filter belt is automatically driven; adjustable automatic cleaning system, which controls the belt run based on the degree of contamination, including LED function check

• CONVENIENT: Filter sponges can be cleaned directly in the filter

• CLEAN AND TIDY: Bottom drain with slide to remove dirt from the filter system

• SMART COMBO: Different filter media for optimal development of filter biology

• EXTRA FOR THREAD ALGAE: Use of PhosLess filter cartridges for reducing thread algae (optional accessory)

• SUITABLE PUMPS: Optimally matched to OASE AquaMax Eco filter pumps

• GOOD PARTNERS: Direct connection option for UVC Bitron C and Eco clarifiers

• DOESN'T CLOG: Uniform water distribution on the filter belt

• PRACTICAL: Large-volume dirt basket with easy cleaning



Technical Data:

Dimensions filter (L x W x H): 1334 x 891 x 815mm
Net weight: 110.00kg
Rated voltage (primary, secondary) : 230 V / 50 Hz, 12 V / AC
Power consumption: 5w
Guarantee: 2 years
Guarantee: 2 years
Number of filter foams, total: 18 units
Number of blue filter foams: 4 units
Number of red filter foams: 7 units
Number of purple filter foams: 7 units
Special filter granulate: 14.50kg
Temperature display : No
Coarse debris extraction; 300 µm
Connection inlet filter : 25 / 38 / 50mm
Connection inlet filter        1", 1 ¼", 1 ½"
Connections, outlet filter        2", DA 110
Sludge discharge connections: DN 75
Max. flow rate: 17500l/h
Suitable for ponds up to max.: 145.0m3
Suitable for ponds with fish stock: 72.0m3
Suitable for ponds with koi : 36.0m3
Connection to : Bitron C 36 - 110 W, Bitron Eco 120 - 240 W
