TUNZE UNIVERSAL PUMP MINI

5024.040

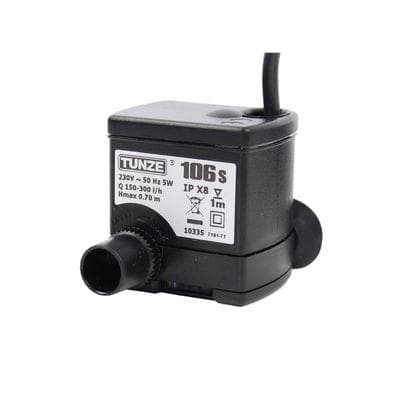

Tunze Universal Mini Pump 5024.040 is a very compact and robust synchronous motor driven centrifugal pump controllable from 150 to 300 l/h .

It can be fitted into every small space, such as in TUNZE Diffuser 7074.50. Its drive assembly oscillates freely on a fixed stainless steel shaft, thus the pump is very silent and needs only minimal maintenance.

Specifications:

• Pumping capacity: 150 300 l/h (39.6 79.2 US gal./h)
• Power: 5 watts
• Head max: 0.7 m (27.5 in.)
• Voltage supply: 230V/50Hz (115V/60Hz)
• Cable: 2 m (78.7 in.)
• Housing without outlet and suction cup: 44 x 43 x 42 mm (4.0 x 3.5 x 2.95 in.)
• Outlet pipe: L 16 mm (.62 in.), diam. 13/10.5 mm (.51/.41 in.)
