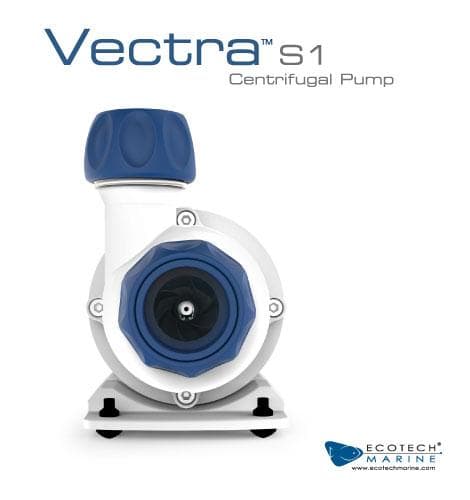

VECTRA S1 RETURN PUMP 1400 GPH 5300 LPH

The Vectra S1 is a silent aquarium pump. The centrifugal pump operates quietly, making it suitable either as a return pump or closed loop pump. Vectra S1 has pre-defined modes, allowing you to switch easily between different flow patterns such as constant flow, lagoonal random flow, reef crest random flow and gyre flow.

Specifications

• Flow: 1400 GPH (5300 LPH)
• Supports Ecosmart Live wireless over PC and mobile device
• Max Head Pressure: 11.5 feet (3.5 m)
• Dimension: 3.5 in. x 6 in. (89mm x 152mm)
• Input: 1 inches (25 mm)
• Output: .75 inches (19 mm)

Calibration - The Vectra can be set to auto calibrate to your tank. As a return pump, this smart feature prevents back siphoning if the pump is turned down and also provides a neutral flow condition in feed mode.

Ecosmart Live - All Vectra pumps are compatible with ReefLink. Reeflink provides completely wireless access to the world of EcoSmart Live, the web-based aquarium command center from EcoTech Marine.

Battery Backup option - When power goes out for whatever reason, the Vectra pump will continue to function uninterrupted, thanks to the optional EcoTech Battery Backup accessory designed for Vectra pumps.

Flexible Installation - Included with the Vectra Pump are QuickCouple components, these fitted couplers provide the flexibility to make installation, cleaning and adjustments a breeze. The Vectra also boasts the ability to rotate the volute of the pump to adapt to the needs of your plumbing setup.

• Easy Connection
• Fast Setup
• Quick Disassembly
• British Standard Pipe Threading

Return Pump Modes

• Constant Speed - Constant Speed mode is the default mode of the Vectra, this makes the pump produce flow at a constant speed that is determined by the position of the dial.
• Feed Mode - At the touch of a button the Vectra pump will temporarily pause the current mode and idle allowing food to be added to the tank without being cycled into the overflow and filtration.
• Speed Lock - Speed Lock gives you the ability to lock in a desired speed on the pump by disabling the control dial protecting you from accidental and not so accidental unwanted changes in speed.

Closed Loop Modes

• Lagoonal Random - Lagoonal Random mode simulates a low-energy lagoon environment. The speed of the pump is changed slowly to recreate the gentle currents of a lagoon.
• Reef Crest Random - Reef Crest Random mode simulates a high-energy reef environment. The pump will change speed frequently and drastically to simulate crashing waves and surging tide. This is a favorite of SPS coral.
• Gyre - Gyre mode creates a flow pattern consisting of uniform clockwise and counterclockwise flow levels pulsing at a selected interval between two seconds and two hours.
